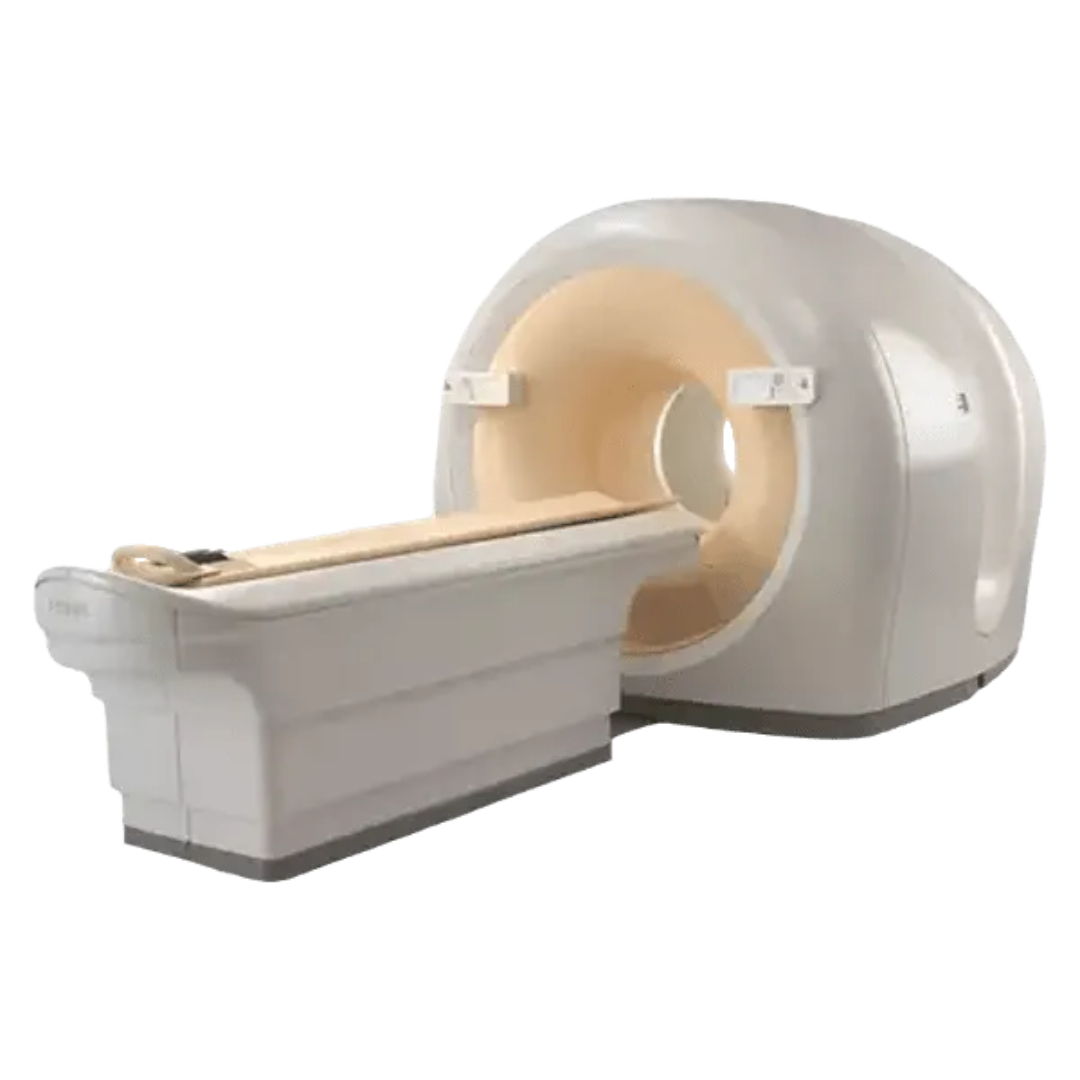

Philips Ingenuity TF

The Philips Ingenuity TF PET/CT System is built on Philips’ proven Astonish Time-of-Flight (TOF) platform, designed to eliminate trade-offs between image quality and radiation exposure. By combining fast-decay LYSO scintillation detectors with high-speed multi-slice CT technology (available in 64- and 128-slice configurations), the system provides precise functional-anatomical co-registration. Its advanced dose-management algorithms and personalized workflow software enable radiology and nuclear medicine teams to detect smaller lesions early, track treatment responses accurately, and comfortably process high daily patient volumes.

Key Features

• Astonish Time-of-Flight (TOF) PET Engine: Measures the differential arrival time of coincidence photons (~495 ps timing resolution) to boost signal-to-noise ratio (SNR) and deliver up to 30% enhanced image contrast.

  PM Imaging Management

• High-Density LYSO Crystal Detector Matrix: Equipped with 28,336 LYSO scintillation crystals and continuous light-guide technology for high photon stopping power and spatial resolution below 2 mm.

  Scribd

• iDose4 CT Reconstruction & O-MAR: Advanced iterative CT technology that reduces radiation dose by up to 80% while O-MAR suppresses streaks caused by metal orthopedic implants.

  PM Imaging Management

• iPatient Workflow Platform: Automated system controls and scan protocols that personalize imaging to each patient’s size and needs while speeding up setup time.

  PM Imaging Management

• OpenView Separating Gantry Concept: Allows the PET and CT gantries to separate by up to 60 cm, providing an airy environment that reduces patient anxiety and claustrophobia.

  Catalogs Medicalexpo

Key Benefits

• Superior Lesion Visibility & Accuracy: High spatial resolution and TOF contrast clarity empower clinicians to spot subtle primary tumors, small metastases, and lymph node involvement early.

  PM Imaging Management

• Patient-Centered Radiation Safety: Integrated iDose4 CT protocols allow high-clarity diagnostic imaging at significantly lower radiation doses for routine adult and pediatric scans.

  Catalogs Medicalexpo

• Fast Whole-Body Acquisition: Fast PET reconstruction speeds (as fast as 30 seconds per bed position) shorten overall examination times to around 15 minutes per patient.

  PM Imaging Management

• Flexible Diagnostic Capabilities: Excels at complex oncology staging, cardiac perfusion quantification, and neurological metabolic evaluation.

  healthcare-in-europe.com

• High ROI & Scalable Architecture: Combines dependable hardware with modular slice upgrades, giving medical facilities a long-term, high-yield diagnostic asset.

  PM Imaging Management
