Philips Ingenuity

Description

Overview

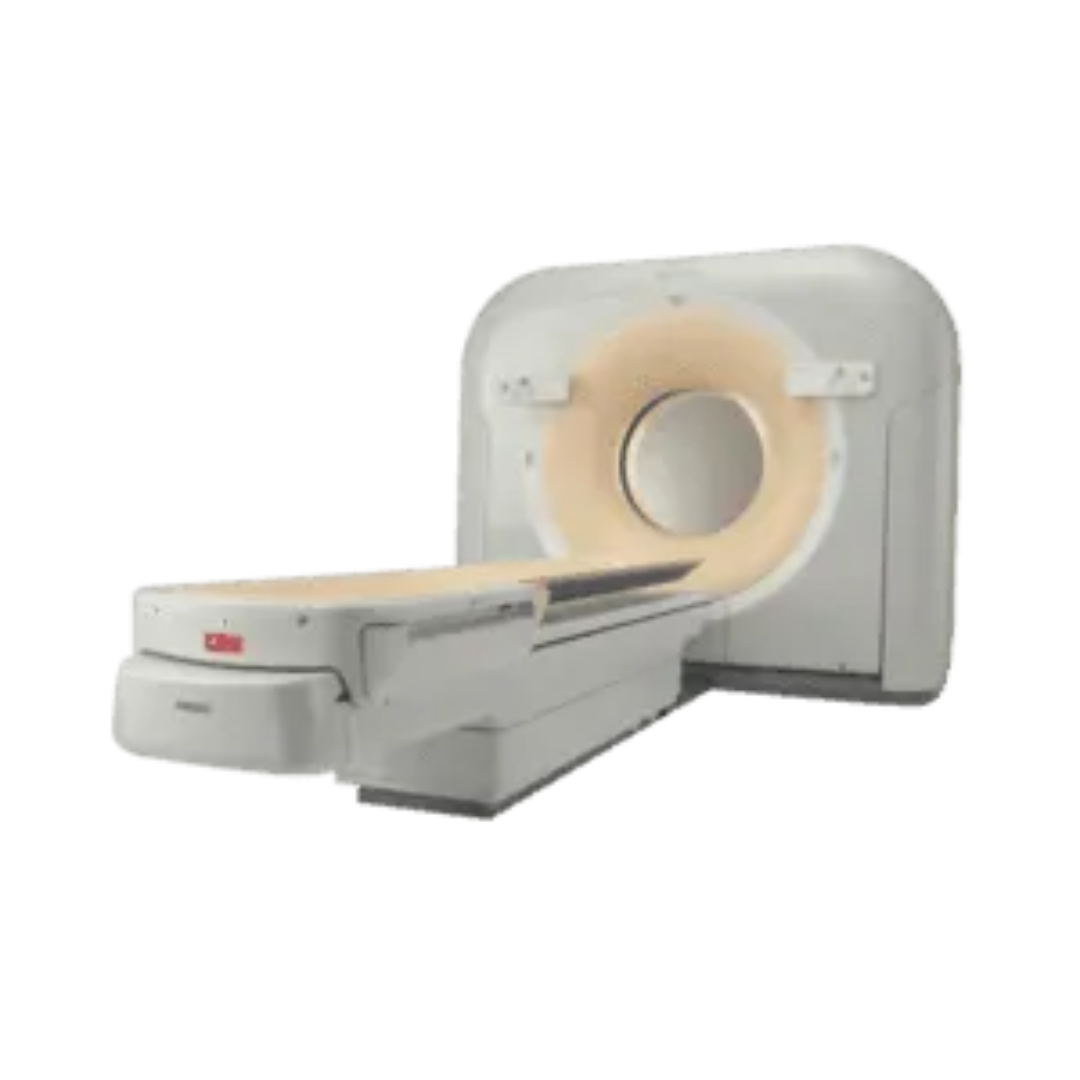

The Philips Ingenuity CT Scanner series is designed to overcome clinical compromises by balancing low-dose imaging with high spatial resolution and operational efficiency. Tailored for community hospitals, busy outpatient clinics, and academic medical centers, the Ingenuity platform adapts scan protocols dynamically to the unique anatomical requirements of each patient.

Built around the iPatient software platform, the Ingenuity system shifts focus from managing complex scan parameters to planning patient-centered outcomes. Operators can automate multi-planar reformations, contrast timing, and organ-specific dose settings with minimal manual input. Driven by the heavy-duty MRC Ice tube, the scanner ensures continuous operational uptime even during demanding back-to-back clinical shifts.

Key Features & Advanced Technologies

• iPatient Workflow Platform: Standardizes scanning via pre-configured ExamCards that automate slice positioning, pitch modulation, contrast injector synchronization, and multi-plane 3D reformations.

• iDose⁴ & IMR (Iterative Model Reconstruction):

  • iDose⁴: Dual-space iterative reconstruction engine that reduces image noise by up to 55% while lowering radiation dose by up to 57%–80%.

  • IMR: Premium model-based iterative reconstruction that improves low-contrast detectability by 60% to 80% and reduces noise by 70% to 83%.

• O-MAR (Metal Artifact Reduction): Specifically targets and suppresses streak artifacts caused by large metallic hip, knee, or spinal implants, isolating metal profiles to preserve surrounding soft tissue architecture.

• MRC Ice Liquid-Cooled X-Ray Tube: Direct oil cooling technology with spiral groove bearings provides continuous thermal dissipation (up to 1,608 kHU/min), eliminating mid-day tube-cooling delays during trauma or whole-body CTA exams.

• NanoPanel Detector Array: Solid-state Gadolinium Oxysulfide (GOS) detector matrix designed for low noise pickup, ultra-fast sampling speeds, and high sub-millimeter detail.

• DoseRight Suite: Includes 3D-DOM (three-dimensional dose modulation), Automatic Current Selection (ACS), and DoseRight Index (DRI) to tailor photon output directly to patient weight and target anatomical boundaries.

Technical Specifications
